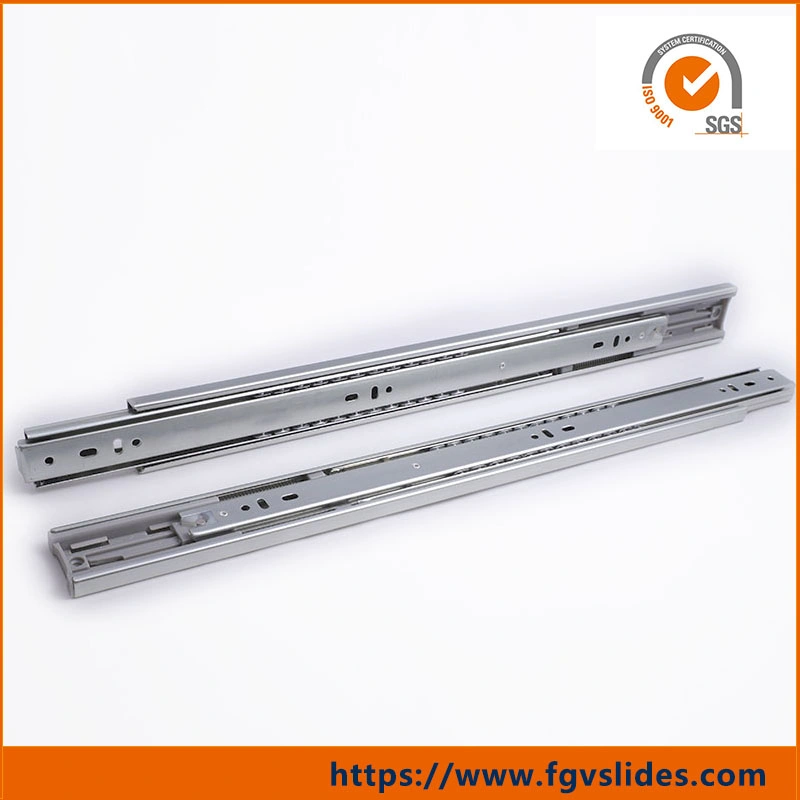

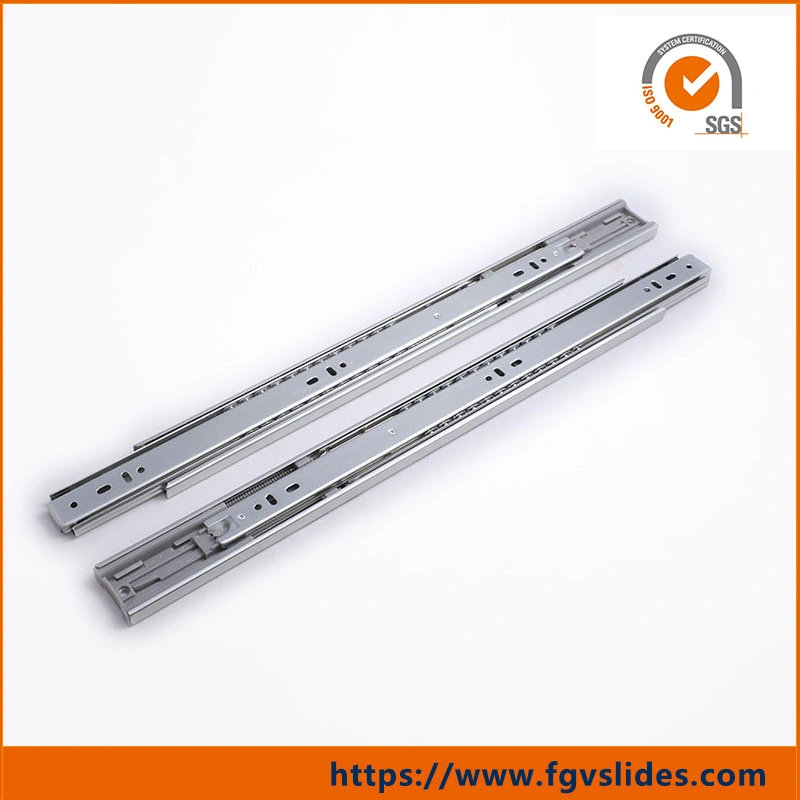

Fgvslide 45mm Soft Close Telescoping Channel Drawer Slides

 MATERIALcold rolled steelFINISHZinc-platedWIDTH45mmLENGTH10-24 inchesTHICKNESS1.0*1.0*1.2mm/1.2*1.2*1.5mmHOLE PATTERNStandardCOLORclear or blackLOAD RATING35 KGs / 45 KGsBALLS2 balls or 3 ballsEDGEOral / SquareINSTALLATIONside mountMOQ1000 pairsEXTENSIONfull extensionTESTpass 48 hrs salt spray test:Test

Featured Products

Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail


MATERIALcold rolled steelFINISHZinc-plated
WIDTH45mmLENGTH10-24 inches
THICKNESS1.0*1.0*1.2mm/1.2*1.2*1.5mmHOLE PATTERNStandard
COLORclear or blackLOAD RATING35 KGs / 45 KGs
BALLS2 balls or 3 ballsEDGEOral / Square
INSTALLATIONside mountMOQ1000 pairs
EXTENSIONfull extensionTESTpass 48 hrs salt spray test
:

Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail
Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail
Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail
TestingSGS TEST
Passed over 50,000 open-close
Passed 48 hours salt spray test
Passed 75 pounds load test
SampleSample free and small order can be accepted
FeaturesStrengthened adjustable screw can widen
 the adjustable ranges and longer using life.
Strengthened spring, thickness 2.5mm instead of  common one thickness:
1.2*1.2*1.5mm or 1.0*1.0*1.2mm
Adopt advanced hydraulic system,longer life time,smaller volume

Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail
Thickness(mm)Length(mm)N.W.(kg)/boxG.W.(kg)/boxCTN SIZE(mm)
1.0*1.0*1.225010.9511.45270*200*100
1.0*1.0*1.230013.1413.64320*200*100
1.0*1.0*1.235015.3315.83370*200*100
1.0*1.0*1.240017.5218.02420*200*100
1.0*1.0*1.245019.7120.21470*200*100
1.0*1.0*1.250021.922.4520*200*100
1.0*1.0*1.255024.0924.59570*200*100
1.0*1.0*1.260026.2826.78620*200*100

  Fgvslide 45mm Soft Closing Telescopic Channel Drawer Slide Rail
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 20 feet container. If there is no need for brand logo and
package, MOQ is 500 pairs per size.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass
production quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose
and the country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-30 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, against B/L
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is
very rare. If there are some quality problems, such as finish problem.
